LiYY

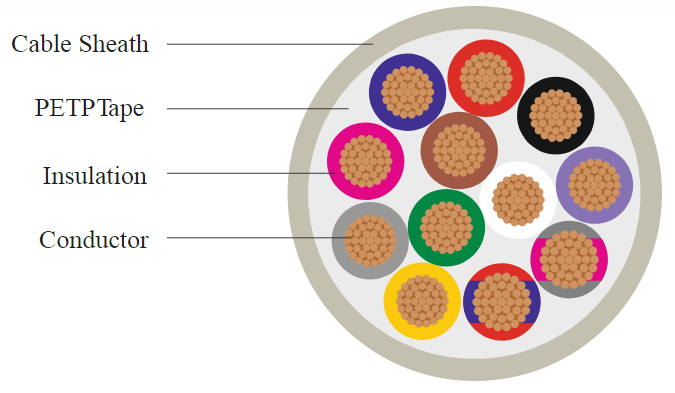

RR Kabel LiYY PVC Data Cable is a
VDE 0812 based flexible communication cable designed for signal transmission in
dry, moist, and wet indoor environments. Suitable for applications requiring
minimum outer diameter, it supports free movement without tensile stress.
Key Features: PVC
self-extinguishing and flame retardant according to EN 60332-1-2.
Design: Fine-stranded
copper cores with PVC insulation and sheath ensure stable low-voltage signal
integrity in control and instrumentation circuits.
Standard : Based on VDE 0812
Voltage
Grade (Not for power installation) : 0.14 mm² = 350 V; >/= 0.25 mm²
= 500 V
Insulation
Resistance : Min. 20 GΩ x cm
Temperature
Range :
Flexing -5°C to +70°C. Fixed installation -30°C to +70°C
Minimum Bending Radius : For flexible use 10 x cable øBreakdown
Voltage : Up to 0.25 mm² = 2400 V. From 0.34 mm² = 4000 V
LiYY (TP)
RR Kabel LiYY (TP) Twisted Pair Data Cable is
engineered for short-run signal transmission in tight routing spaces requiring
reduced outer diameter and small bending radius. Designed with twisted pair
(TP) construction, it improves signal stability in compact automation systems.
Key Features: PVC
self-extinguishing and flame retardant according to EN 60332-1-2.
Design: Fine-stranded
copper conductors arranged in twisted pairs with overall PVC sheath, ensuring
consistent electrical parameters for instrumentation and communication
circuits.
Standard : Based
on VDE 0812
Voltage Grade (Not for power
installation) : 0.14 mm² = 350 V; >/= 0.25 mm² = 500 V
Insulation Resistance : Min.
20 GΩ x cm
Temperature Range :
Flexing -5°C to +70°C. Fixed installation -30°C to +70°C
Minimum Bending Radius : For
flexible use 10 x cable ø
Breakdown Voltage : Up to
0.25 mm² = 2400 V , From 0.34 mm² = 4000 V
LiYCY
RR Kabel LiYCY Shielded Data Cable is
engineered for secure data and signal transmission in computer electronics, CNC
systems, and precision measuring equipment. Designed with optimized copper
braid screening, it significantly reduces electromagnetic interference in
machine industries.
Key Features: PVC
self-extinguishing and flame retardant according to EN 60332-1-2.
Design: Fine-stranded copper conductors with PVC insulation, overall copper braid shield, and outer PVC sheath ensure reliable signal performance in industrial automation environments.
Standard : Based on VDE 0812
Voltage grade (not for power installation)
: 0.14 mm² = 350 V; >/= 0.25 mm² = 500 V
Insulation
Resistance : Min. 20 GΩ x cm
Temperature Range
: Flexing -5°C to +70°C. Fixed installation -30°C to +70°C
Minimum Bending Radius :
Flexing 15 x cable ø. Fixed installation 6 x cable ø
Test Voltage : Up to 0.25 mm² :
1200 V; > 0.34 mm² : 1500 V.
LiYCY (TP)
RR Kabel LiYCY (TP) Shielded Twisted Pair
Cable is designed for interference-free data and signal
transmission in computer electronics, CNC systems, and precision measuring
equipment. The twisted pair configuration combined with optimized copper braid
screening ensures stable communication in electrically noisy industrial
environments.
Key Features: PVC
self-extinguishing and flame retardant according to EN 60332-1-2.
Design: Fine-stranded
copper conductors twisted in pairs, PVC insulated, overall copper screen and
PVC sheath for reliable automation and machine wiring.
Standard : Based
on VDE 0812
Voltage grade (not for power
installation) : 0.14 mm² = 350 V; >/= 0.25 mm² = 500 V
Insulation Resistance : Min.
20 GΩ x cm
Temperature Range : Flexing -5°C to +70°C. Fixed installation -30°C to +70°C
Minimum Bending Radius : Flexing 15 x cable ø. Fixed installation 6 x cable ø
LOREM IPSUM
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec vitae tortor lobortis, suscipit elit vel, lobortis massa. Praesent id semper sem, non pellentesque ipsum. Ut in porta leo. Praesent ornare et urna et scelerisque.
LOREM IPSUM
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec vitae tortor lobortis, suscipit elit vel, lobortis massa. Praesent id semper sem, non pellentesque ipsum. Ut in porta leo. Praesent ornare et urna et scelerisque.
LOREM IPSUM
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Donec vitae tortor lobortis, suscipit elit vel, lobortis massa. Praesent id semper sem, non pellentesque ipsum. Ut in porta leo. Praesent ornare et urna et scelerisque.
| Image |
Ordering Code
|
size sqmm | no of pairs | Qty | Accessories | Enq |
|---|---|---|---|---|---|---|
|
2 x 2 x 0.14 LiYY (TP) |
0.14 |
2 |
|
||
|
|
3 x 2 x 0.14 LiYY (TP) |
0.14 |
3 |
|
||
|
|
4 x 2 x 0.14 LiYY (TP) |
0.14 |
4 |
|
||
|
|
5 x 2 x 0.14 LiYY (TP) |
0.14 |
5 |
|
||
|
|
6 x 2 x 0.14 LiYY (TP) |
0.14 |
6 |
|
||
|
|
10 x 2 x 0.14 LiYY (TP) |
0.14 |
10 |
|
||
|
|
12 x 2 x 0.14 LiYY (TP) |
0.14 |
12 |
|
||
|
|
16 x 2 x 0.14 LiYY (TP) |
0.14 |
16 |
|
||
|
|
2 x 2 x 0.25 LiYY (TP) |
0.25 |
2 |
|
||
|
|
3 x 2 x 0.25 LiYY (TP) |
0.25 |
3 |
|
||
|
|
4 x 2 x 0.25 LiYY (TP) |
0.25 |
4 |
|
||
|
|
6 x 2 x 0.25 LiYY (TP) |
0.25 |
6 |
|
||
|
|
8 x 2 x 0.25 LiYY (TP) |
0.25 |
8 |
|
||
|
|
10 x 2 x 0.25 LiYY (TP) |
0.25 |
10 |
|
||
|
|
2 x 2 x 0.5 LiYY (TP) |
0.5 |
2 |
|
||
|
|
3 x 2 x 0.5 LiYY (TP) |
0.5 |
3 |
|
||
|
|
4 x 2 x 0.5 LiYY (TP) |
0.5 |
4 |
|
||
|
|
8 x 2 x 0.5 LiYY (TP) |
0.5 |
8 |
|
||
|
|
10 x 2 x 0.5 LiYY (TP) |
0.5 |
10 |
|
||
|
|
2 x 2 x 0.75 LiYY (TP) |
0.75 |
2 |
|
||
|
|
3 x 2 x 0.75 LiYY (TP) |
0.75 |
3 |
|
||
|
|
4 x 2 x 0.75 LiYY (TP) |
0.75 |
4 |
|
||
|
|
8 x 2 x 0.75 LiYY (TP) |
0.75 |
8 |
|
||
|
|
10 x 2 x 0.75 LiYY (TP) |
0.75 |
10 |
|
